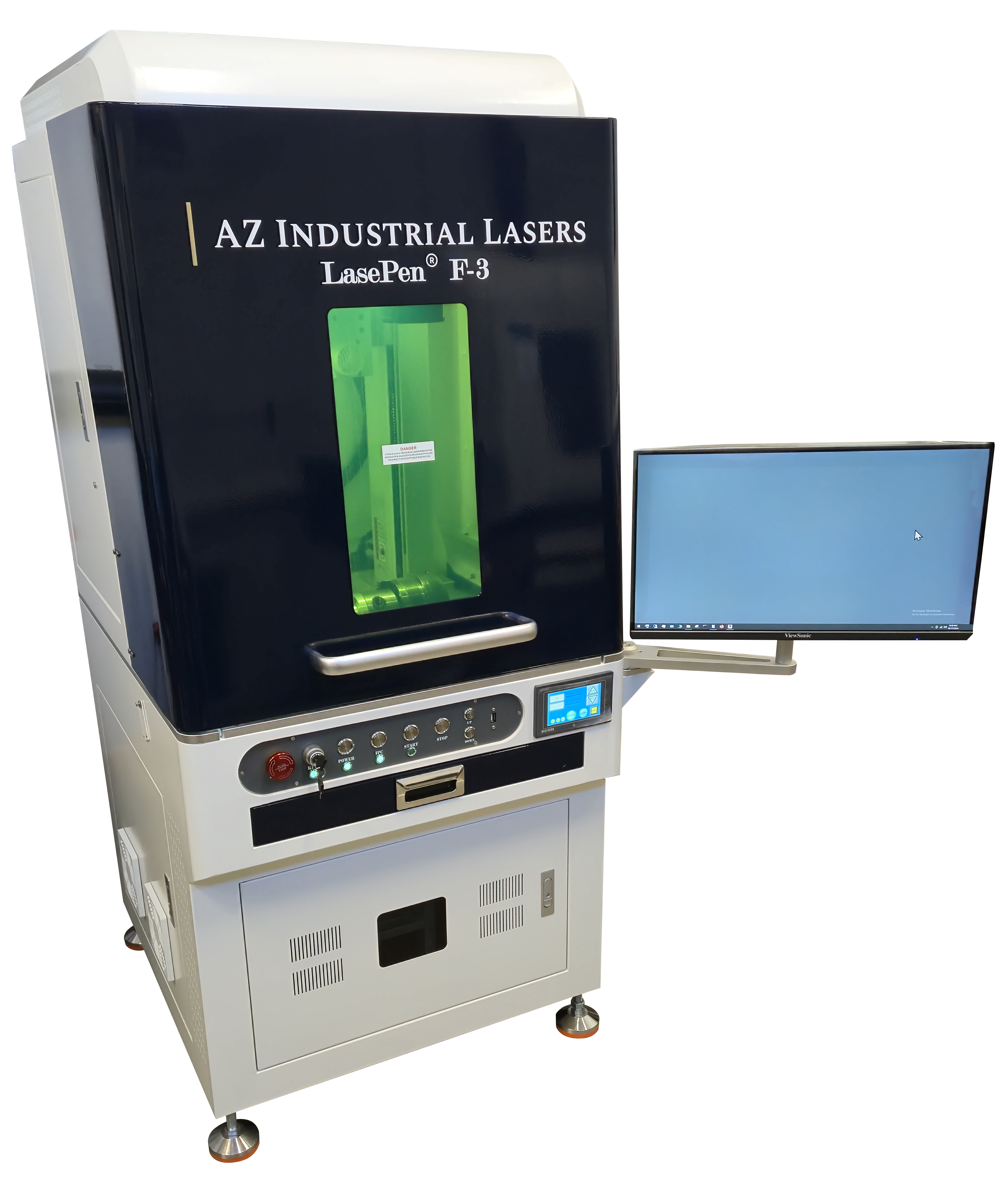

LasePen® F-3

Standalone Fiber Laser Marking Machine

Our LasePen® F-3 is a top-of-the-line stand-alone Fiber Laser marking machine that is highly powerful and efficient. Equipped with a high-quality fiber laser and highly stable Galvanometer, LasePen® F-3 Standalone features excellent marking quality, fast marking speed and low maintenance cost. It has a wide range of applications on all kinds of metals and some non-metal materials.

Compared to conventional marking processes, laser marking is faster and less labor-intensive, no tooling wear or need for waste disposal and delivering highly consistent repeatability.

LasePen® F-3 Standalone features ample inner working space, longer Z-axis travel distance and Class I safety enclosure. Rotary axes and other accessories are available.

Machine Technical Parameters:

Laser Source
Fiber Laser 30W/50W
Laser wavelength
1064nm
Pulse repetition rate
30-200kHz/50-200kHz
Laser beam control
Galvo scanning marking style
User control interface
EZCAD2 (compatible with Lightburn)
Working area
100 × 100 mm² (Customizable)
Max load
~50Kg (~110lbs)
X/Y platform
Adjustable precision platform, manual
Z axis
Motorized, programmable
Safety enclosure
Class I safety enclosure with safety interlock switch
Marking speed
Max 7000mm/s @ F = 163mm
Minimum line width
0.06mm @ F = 163mm (per material)
Minimum character height
0.2mm @ F = 163mm
Machine dimensions
W700mm x D780mm x H1590mm (W27.6” × D30.71” × H62.6”)
Machine weight
~ 180 kg (~397 lbs)
Power supply
110V or 220v
Total power consumption
≤1.5KW
Cooling system
Air cooling
Graphic Format Supported
Vector files (DXF/AI/DST/PLT, etc.) & Image files (BMP/JPG/PNG/GIF/TGA/TIF, etc.)

*All specs might be subject to change without notice due to continuous improvement.

Options & Accessories

  • Rotary fixture
  • Field lenses in various sizes
  • Exhaust system
